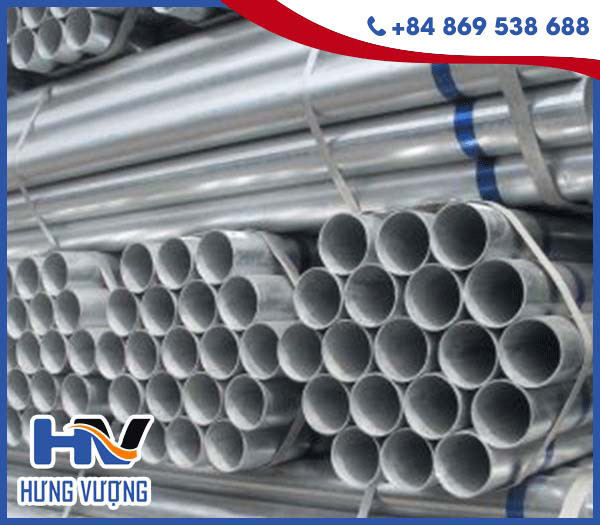

HOT-DIP GALVANIZED STEEL PIPES

Hot-dip galvanized steel pipes feature a zinc coating thickness of up to 50 μm, delivering exceptional corrosion resistance compared to conventional steel pipes. This superior performance makes them ideal for a wide range of applications, including coastal areas and harsh environmental conditions.

1. Definition

Hot-dip galvanized steel pipes are carbon steel pipes coated with a protective zinc layer through the hot-dip galvanizing process.

Hot-dip galvanizing has been one of the most effective and widely adopted corrosion protection methods since 1836. The process forms a durable zinc–steel metallurgical bond, creating a long-lasting protective barrier that shields the steel from environmental exposure. For over 180 years, this technology has been extensively applied in construction, transportation, infrastructure, and high-performance industrial applications.

2. Key characteristics

• Zinc coating thickness: 40-80 μm (significantly thicker than cold galvanizing, typically 20–30 μm)
• Surface appearance: Coarse, matte finish with a silver-gray tone, coating uniformity may vary depending on process conditions.
• Mechanical properties: Approximately 195 MPa (yield strength), 320-520 MPa (tensile strength), over 50 years in rural environments, and approximately 20 years in urban or coastal areas (service life).

Thanks to these characteristics, hot-dip galvanized steel pipes are widely regarded as a cost-effective alternative to austenitic stainless steel or aluminum for corrosion-prone environments.

3. Applicable standards

Hot-dip galvanized steel pipes are manufactured in compliance with major international and domestic standards:

British / European standards:

• BS EN 10255:2004 - Welded steel tubes (technical requirements)
• BS 1387:1985 - Welded steel pipes
• BS 4504 - Steel flanges
• BS 21 - Pipe threads

American standards

• ASTM A53 / A53M - Steel pipes for pressure and structural applications
• ASTM A530 / A530M - General requirements for carbon and alloy steel pipes

Japanese standards

• JIS G3444:2015 - Carbon steel pipes for general structural use
• JIS G3466:2015 - Square and rectangular carbon steel tubes

Vietnamese standards

• ISO 9001 - Quality management system
• TCVN 5408:2007 (ISO 1461) -  Hot-dip zinc coatings
• TCVN 7665:2007 (ISO 1460) - Zinc coating mass determination
• TCVN 12514:2018 - Zinc-coated steel for concrete reinforcement

4. Manufacturing process

The hot-dip galvanizing process involves immersing steel pipes in molten zinc after thorough surface preparation.

Process overview:

• Slitting hot-rolled steel coils
• Uncoiling and accumulation
• Pipe forming
• Welding
• Weld bead removal
• Sizing and straightening
• Cutting to length
• Pickling (surface cleaning)
• Hot-dip galvanizing at 400-500^oC
• Zinc air-blowing (internal & external)
• Surface passivation
• Final quality inspection

This process creates a continuous zinc coating on both internal and external surfaces, forming a robust protective layer with excellent adhesion and durability. Compared to cold galvanizing (electro-galvanizing), hot-dip galvanizing provides:

• Thicker coating
• Stronger metallurgical bonding
• Superior corrosion resistance
• Longer service life

5. Advantages and limitations

5.1 Advantages

• Outstanding corrosion resistance through formation of stable zinc compounds (ZnO, Zn(OH)₂, zinc carbonate).
• Long service life, up to 50 years under suitable conditions.
• High coating toughness, resistant to impact and abrasion.
• Full-surface protection, including edges, corners, and internal cavities.
• Time- and cost-efficient, outperforming many organic coating systems with similar durability.

5.2. Limitations

• Improper zinc control may cause zinc buildup or surface irregularities.
• Inadequate surface preparation or low zinc purity may reduce coating performance and appearance.

6. Typical applications

Hot-dip galvanized steel pipes are widely used in applications requiring high corrosion resistance and long-term reliability, including:

• Coastal and marine structures
• Guardrails, fencing, and scaffolding
• Firefighting and water supply pipelines
• Oil and gas transmission systems
• Transportation infrastructure
• Automotive and motorcycle manufacturing
• Household and industrial equipment
