Galvanized steel coils

GALVANIZED STEEL COILS

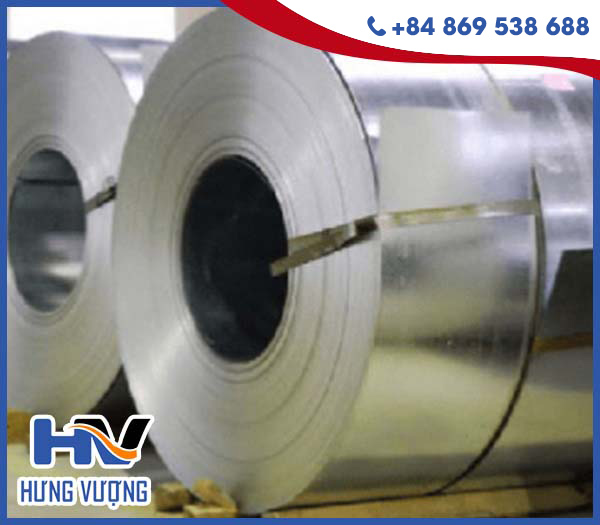

Galvanized steel coils (also referred to as zinc-coated steel sheets, galvanized steel, cold-rolled galvanized steel, or zinc-plated sheets) are steel sheets coated with a protective zinc layer through the hot-dip galvanizing process, which significantly enhances corrosion resistance and extends product lifespan. At present, galvanized steel coils are commonly classified into 2 main categories: hard galvanized sheets and soft galvanized sheets, depending on mechanical properties and intended applications.

Technical specifications:

• Applicable standards: JIS G3302 (Japanese Standard), ASTM A653 (American Standard), AS 1397 (Australian Standard), BS EN 10346 (European Standard).
• Thickness range: 0.20mm + 3.2mm.
• Common thicknesses: 0.18mm, 0.20mm, 0.22mm, 0.25mm, 0.30mm, 0.35mm, 0.37mm, 0.40mm, 0.42mm, 0.45mm, 0.47mm, 0.48mm, 0.50mm, 0.52mm, 0.58mm.

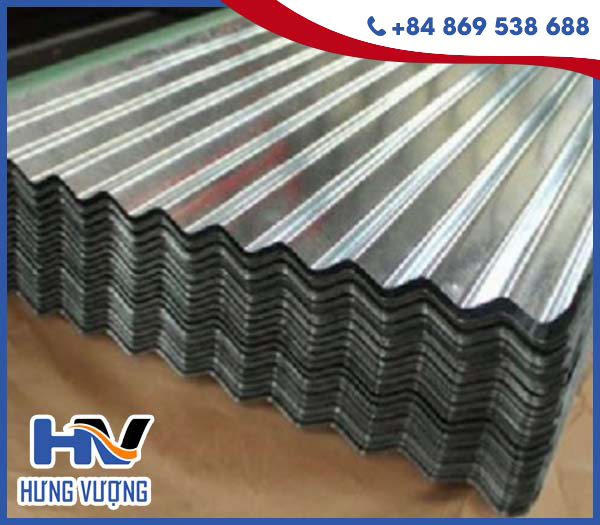

• Profiles: 13-wave ceiling profile, 5-wave square profile, 7-wave square profile, 9-wave square profile, and flat sheets (available in coil or cut-to-length form)
• Manufacturing technology: Most galvanized steel products are manufactured using NOF (non-oxidizing furnace) technology, ensuring uniform zinc coating and superior surface quality.
• Sheet width: 400mm + 1800mm

Applications:

Galvanized steel coils are extensively applied across construction, manufacturing, and industrial sectors, including:

• Production of roofing panels, wall cladding, partitions, and structural coverings in residential, commercial, and industrial construction.
• Manufacturing of outer casings and structural components for household electrical and refrigeration appliances such as refrigerators, washing machines, computers, and rice cookers, as well as industrial equipment, drainage, and ventilation systems.
• Fabrication of automotive and motorcycle components and spare parts.
• Use in the advertising industry, including outdoor signage, billboards, and display panels.
• Manufacturing of rolling shutters, sliding doors, folding doors, and industrial shutter systems.
